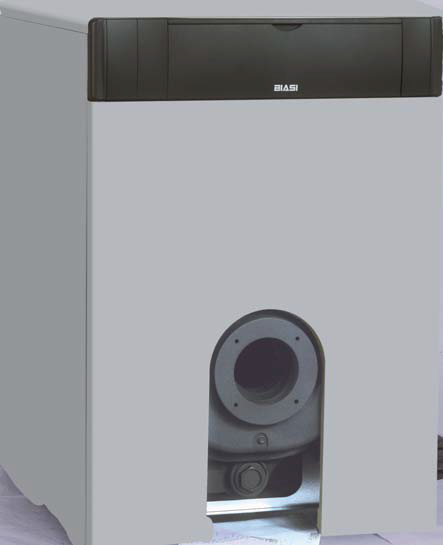

biasi – SG cast iron boilers fully
40 kW - 77 kW
BIASI provide reliable, user-friendly heating solutions delivering superior performance at affordable prices.
Available in 4 different models with power that ranges from 40 kW and up to 77 kW. These models work on either oil or gas.
SG46
Number of section
4
Net Output
46.5Kw
Thermal output
51.4Kw
Efficiency at 100% net output
91%
Efficiency at 30% net output
91%
Flue gas temperature
195 °C
Flue gas side load loss
0.27mbr
Water side load loss
11mbr
Water content
36L
Maximum operating pressure
4Bar
Combustion chamber diameter
290 mm
Combustion chamber length
530 mm
Flue connection
110 mm
Flow/ return connection
1/4 1 G"
fil/drain connection
1/2 G"
This model is available with or without a water tank
SG58
Number of section
5
Net Output
58Kw
Thermal output
64Kw
Efficiency at 100% net output
90.9%
Efficiency at 30% net output
91%
Flue gas temperature
210 °C
Flue gas side load loss
0.3mbr
Water side load loss
18mbr
Water content
42.8L
Maximum operating pressure
4Bar
Combustion chamber diameter
290 mm
Combustion chamber length
660 mm
Flue connection
110 mm
Flow/ return connection
1/4 1 G"
fil/drain connection
1/2 G"
This model is available with or without a water tank
SG70
Number of section
6
Net Output
70Kw
Thermal output
77.5Kw
Efficiency at 100% net output
90.3%
Efficiency at 30% net output
91%
Flue gas temperature
220 °C
Flue gas side load loss
0.35mbr
Water side load loss
28mbr
Water content
49.6L
Maximum operating pressure
4Bar
Combustion chamber diameter
290 mm
Combustion chamber length
790 mm
Flue connection
110 mm
Flow/ return connection
1/4 1 G"
fil/drain connection
1/2 G"
This model is available with or without a water tank
SG80
Number of section:
7
Net Output
81Kw
Thermal output
89.5Kw
Efficiency at 100% net output
90.5%
Efficiency at 30% net output
91%
Flue gas temperature
220 °C
Flue gas side load loss
0.4mbr
Water side load loss
40mbr
Water content
56.4L
Maximum operating pressure
4Bar
Combustion chamber diameter
290 mm
Combustion chamber length
920 mm
Flue connection
110 mm
Flow/ return connection
1/4 1 G"
fil/drain connection
1/2 G"
This model is available with or without a water tank
